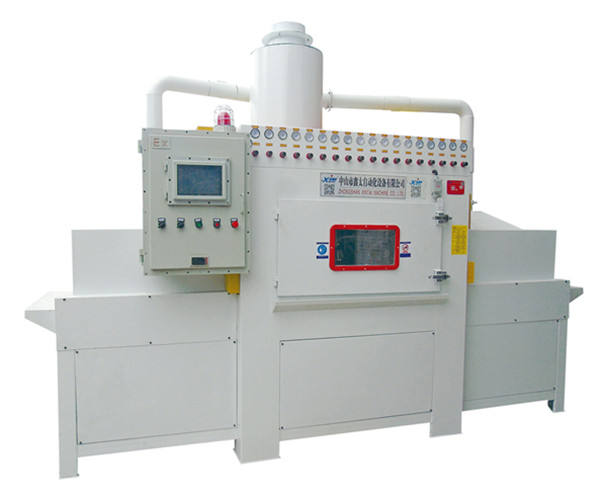

Conveyor type automatic sandblasting machine

Conveyor type automatic sandblasting machine
Conveyor type automatic sandblasting machineConveyor type automatic sandblasting machineConveyor type automatic sandblasting machine
CategoriesAutomatic sandblasting machine series
AlbumView larger image
BrandXintai
Update Time2020-12-05
Detail Information
Host shell parameters
Sandblasting area size
1600mm (length) × 1100mm (width) × 830mm (height)
Overall dimensions
3700mm (length) × 1920mm (width) × 3200mm (height)
Feed inlet
1100mm (width)
Dust box size
1200mm (length) × 1200mm (width) × 2400mm (height)
Sandblasting gun
a total of 18 in 4 groups (swing speed stepless frequency control, angle can be adjusted 360°); belt horizontal position 2 (fixed)
Energy allocation and consumption
 one centrifugal fan
5.5kw
One spray gun swing motor
0.75kw
one conveyor motor
1.5kw
One horizontal spiral motor
0.75kw
lighting and control circuit
0.25kw
the upper and lower auger
0.2W+0.75W
lifting motor
1.5KW
the total power of the machine
except for air compressors about 11kw.
Description
1 This equipment has high processing efficiency, simple operation, energy saving, environmental protection and no pollution. The surface of the product after blasting is clean, no adhesion and debris, and the surface blasting effect is consistent.

2 The gun is rocking and the swing frequency of the gun can be adjusted.

3 This machine is equipped with a variable frequency speed control conveyor belt with a conveying speed of 0.5-3 m/min, which can be adjusted as needed. A support shaft is mounted on the lower part of the belt. Can withstand 150KG weight.

4 This machine is equipped with cyclone separator, which can effectively separate the usable abrasive and dust, can recover the escaped sand, reduce the loss of sand and save cost.

5 Equipped with independent dust box and dust removal fan, it can effectively clean and collect the dust scattered in the chamber to prevent dust pollution. With the separator, the sand circulation of 8 spray guns can be fully supplied.
